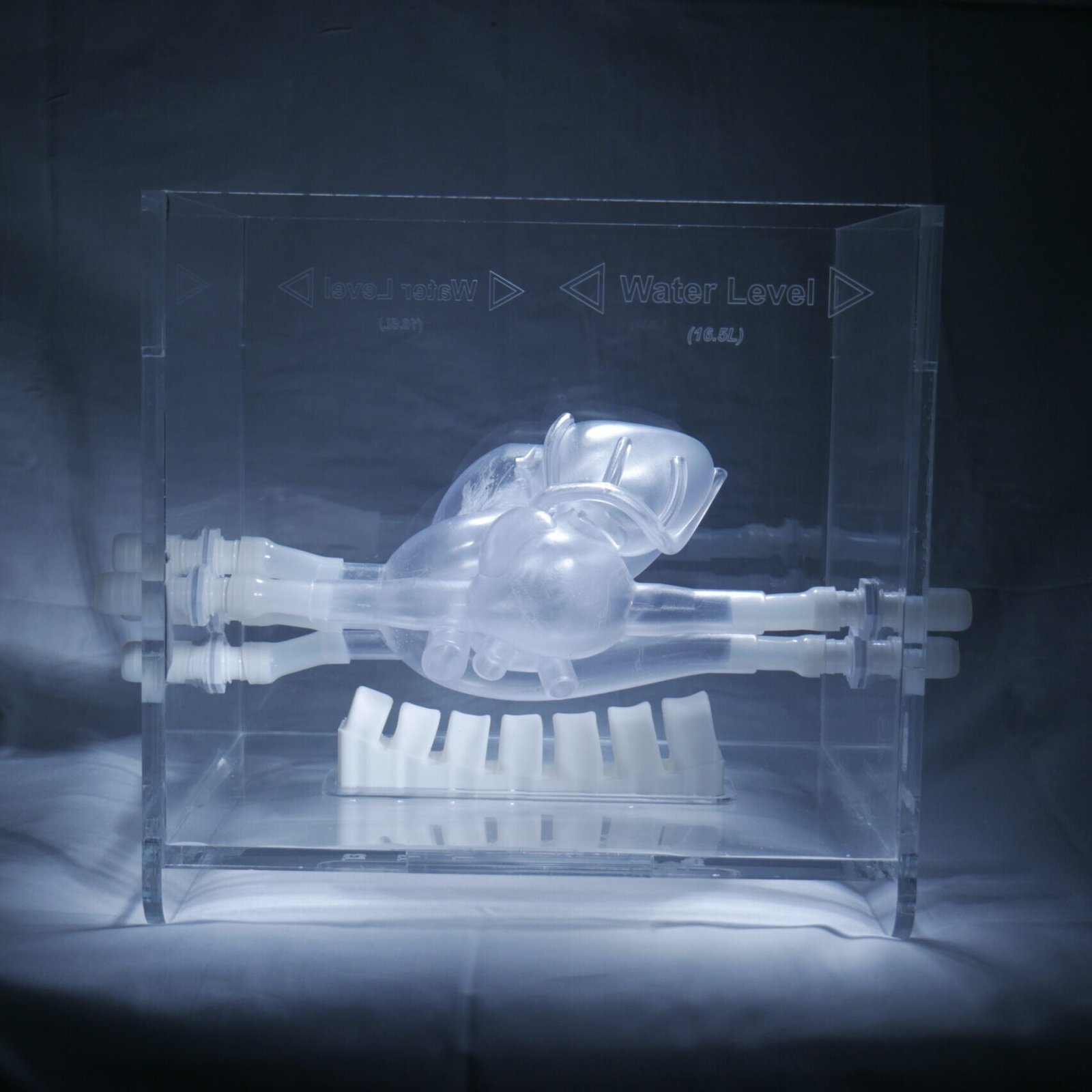

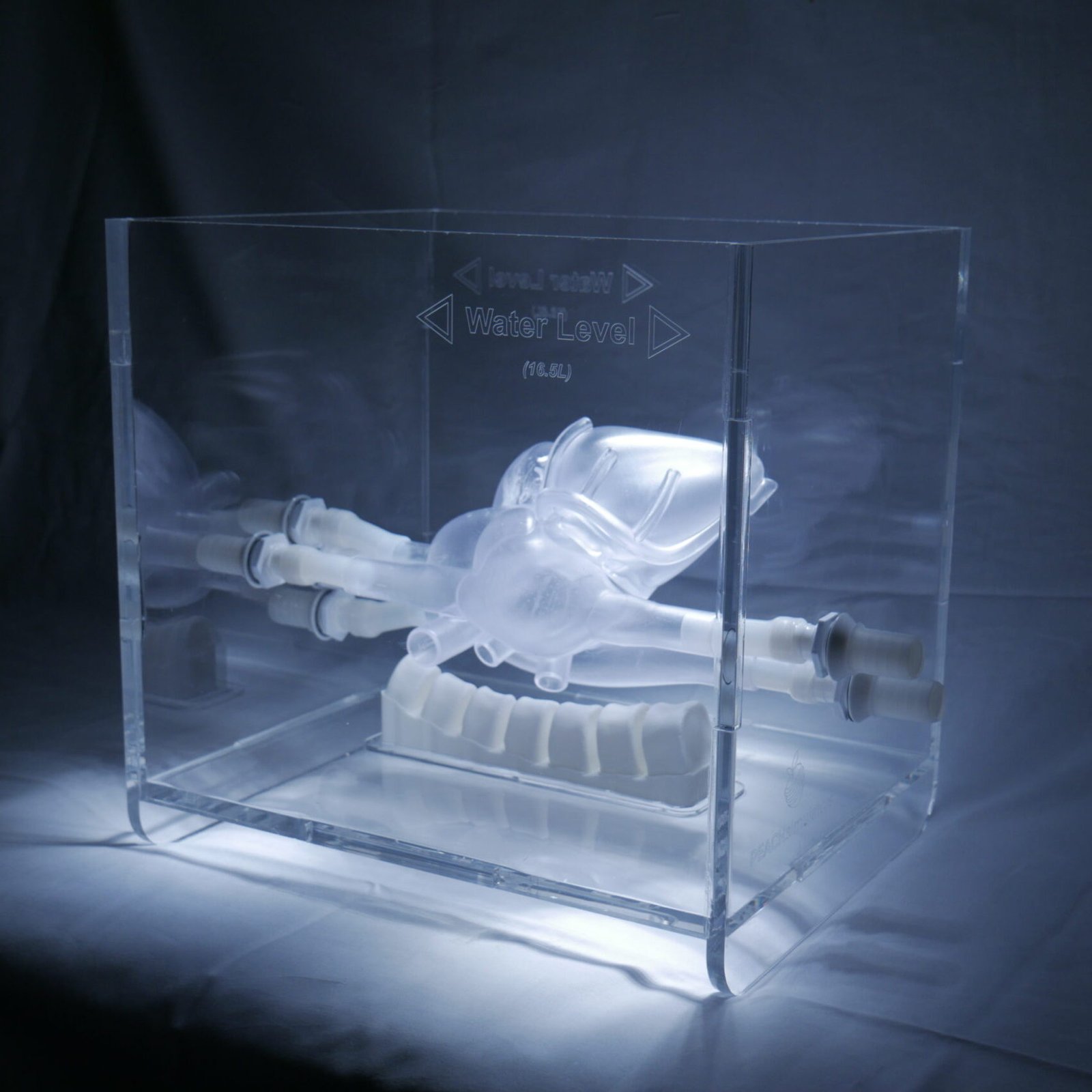

The Cardiovascular Interventional Simulator is a fully modular heart and vascular training platform designed for repeated catheter-based training, device testing and experimentation. The silicone heart phantom is housed in an acrylic water tank, while vessel ports allow connection to off-the-shelf pumps and flow systems when required. Modular catheter-entry blocks reproduce the curvature of leg, arm and neck access routes and incorporate replaceable valves for repeated catheter and sheath insertion using the Seldinger technique. The radiographic realism can be achieved using 3D radiographic spine or x-ray test plates placed under the tank. The system can also be fitted with additional radiographic markers to further enrich the radiographic scene. The system can be assembled, disassembled and maintained with ease, with replaceable components.
|
WHAT CAN BE PRACTISED • Implant Placement • Catheter navigation • Vascular repair |
TRAINING SETTINGS • Catheterisation laboratory • Classroom • Office |
EDUCATIONAL VALUE • Reusable for over 500 hours • Transparency aids inexperienced users. • Replaceable parts minimise teaching/maintenance costs. |
|
TECHNICAL SPECIFICATIONS Colour: Clear, translucent. Material: Silicone, acrylic, urethane. Imaging compatibility: x-ray, MRI, ultrasound. Flow: Compatible with pumps, pump not included. Radiographic features: Spine, x-ray test plates, additional radiographic markers. |
INTENDED TRAINING APPLICATION • Valve implantation and repair (e.g. TAVI, mitral clip) • Stent placement • Catheter navigation and manipulation • Cardiovascular interventional techniques • Seldinger access technique • Device testing and procedural rehearsal |
USAGE AND LIFESPAN
|
500+ HOURS REUSABLE TRAINING Designed for repeated teaching, training and experimentation. |

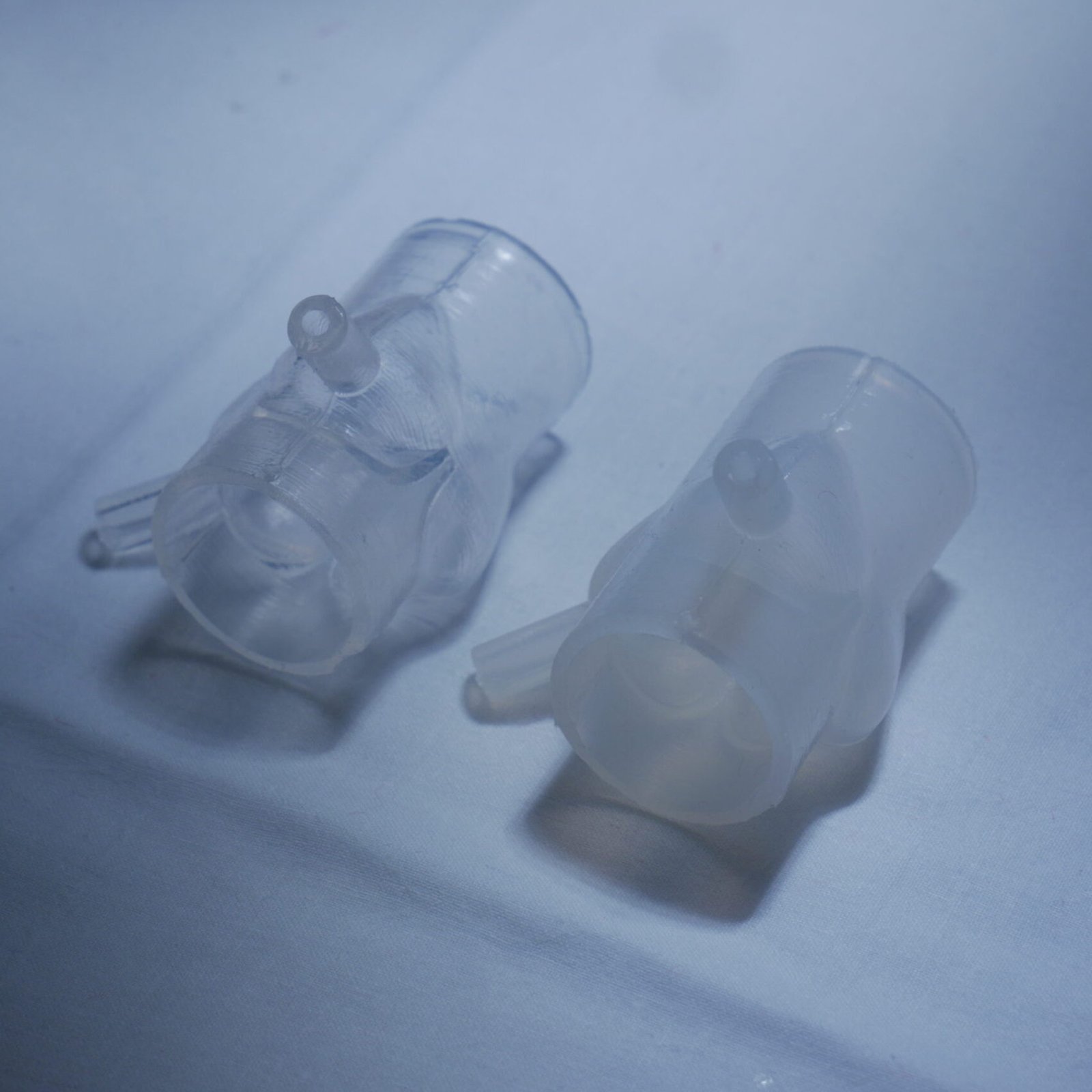

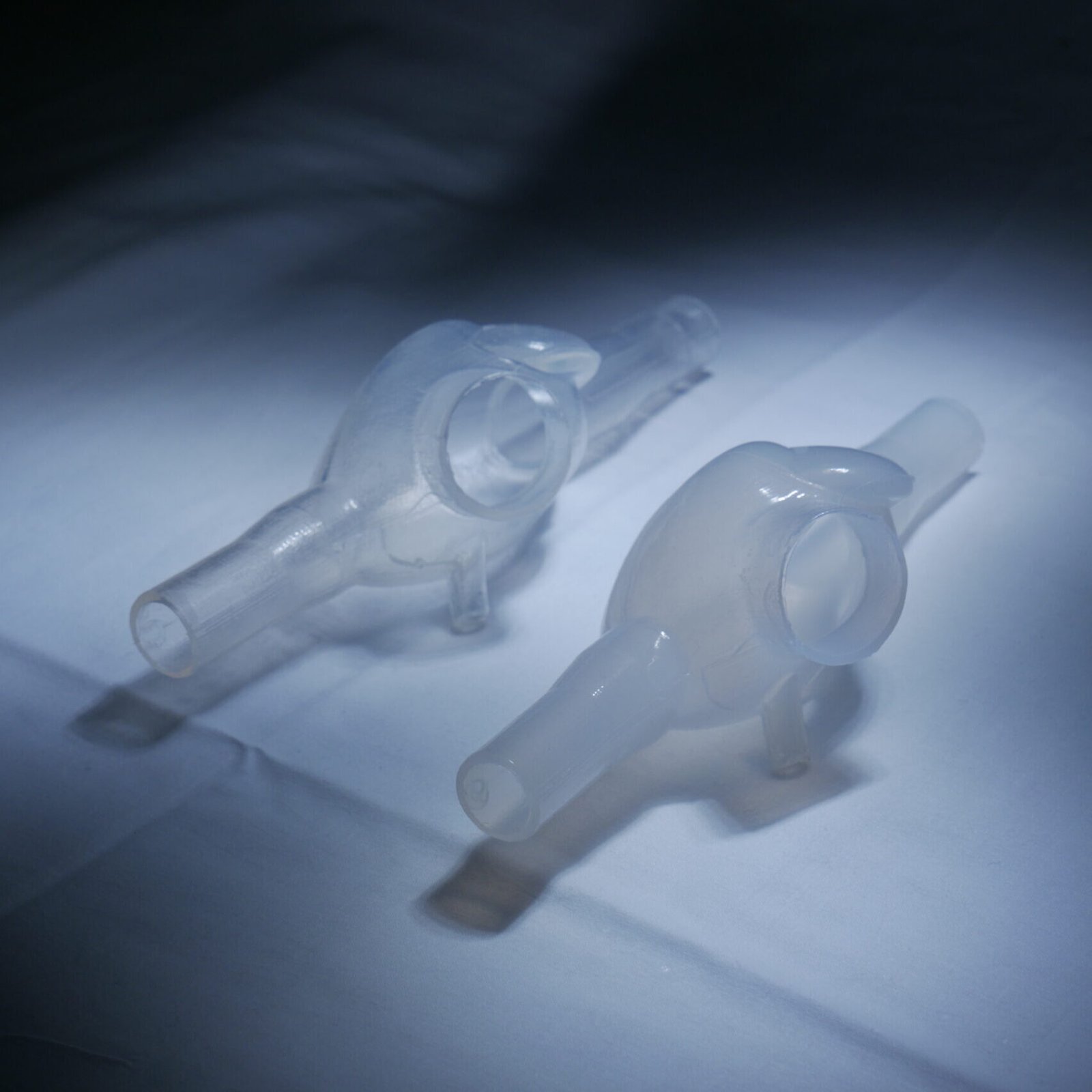

LOW MAINTENECE REPLACEABLE PARTS All parts including the heart valves and access components can be serviced or replaced. |
MULTI-PROCEDURE VERSATILE TRAINING Supports most catheter-based cardiovascular interventional procedures. |
Manuals and Technical Sheets:
Technical Sheet – Click here to download the Technical Sheet
